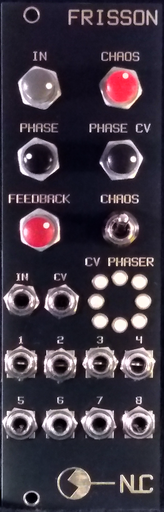

Frisson

This is a chaos module based on the Mackey-Glass equations which were developed to show the delay in physiological systems when producing or reducing certain cells in response to variations in concentration of those cells. The result is a very complex and easily controllable chaotic pattern.

The basic Mackey-Glass system implemented into electronics is a nonlinear stage, a low pass stage and a delay stage connected in a loop.

In this circuit the delay stage is made of 8 Bessel filters, configured for sub-audio rates, which are voltage controlled via LDRs, this section is very similar to an 8 stage phase shifter. Each filter stage has an output to the front panel. There is also an external input to inject signals into the chaos which is rather interesting.
