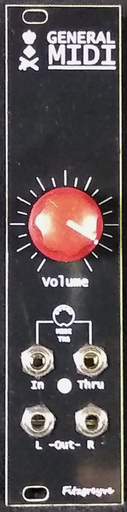

General MIDI

The module is specifically designed to use the "DreamBlaster Synth S2 General MIDI Daughterboard" from Serdaco BVBA. While this daughterboard is relatively costly, it provides access to a ready soldered and tested SAM2695 IC* in a very small outline PCB that will fit behind a 6HP Eurorack module.

General MIDI Build document

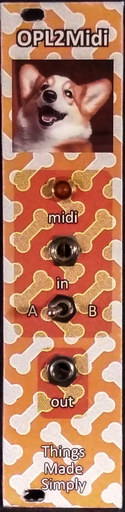

OPL2Midi

Things Made Simple / dlakwi Ensign Core

Tyler Klein == Things Made Simple 10 part series on the Yamaha YM3812 OPL2 FM sysnthesis chip

YouTube Series

A Eurorack panel was added to the 'Synthcard' design

paper label panel design

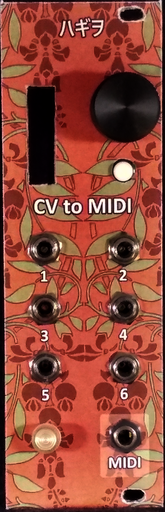

CV to MIDI

HAGIWO/ハギヲ

CV to MIDI operating in 1 of 5 modes to generate Note, Gate, and CC messages

paper label panel design

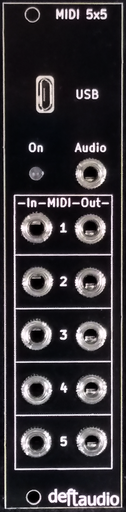

MIDI 5x5

Deft Audio

5x5 MIDI interface, merger, splitter, filter

Teensy 4.0 design

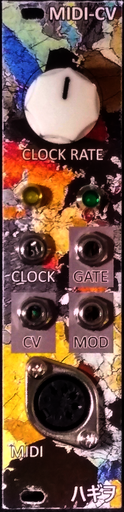

MIDI to CV

HAGIWO/ハギヲ

MIDI to CV

paper label panel design

updated: 2024-10-24
